Technical Specifications |
| |
|
|
| |
|
| SE580 |
| Description |
| Available in 2, 3, 4, & 6, no of ways. |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies Invertors Stabilizers, Airconditioners Industrial lights, Industrial Control panel etc. |
| Features |
| Nickel Plated Screws |
| Also available in |
Code No |
No. of
Ways |
Dimensions |
| A |
| SE580 |
02 |
41.5 |
| SE581 |
03 |
60 |
| SE582 |
04 |
78.5 |
| SE583 |
06 |
115.5 |
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
60 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|

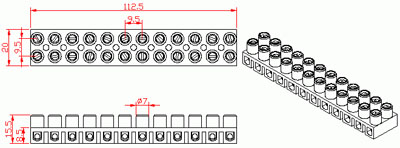

| SE515 |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
| Features |
Nickel Plated Screws for rust prevention
LDPE Insulation for flexibility |
| Also available in |
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
6 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 85 °C |
| Housing Material |
LDPE |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Colour |
Natural |
| Wire Entry Dia |
1.5 mm sq. Max |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
| |
|

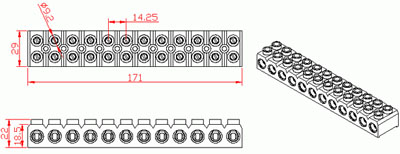

| SE514 |
| Description |
Nickel plated Screws for rust prevention
Phenolic (Bakelite) Insulation Strip |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
| Features |
| Nickel Plated Screws |
| Also available in |
| 1 |
SE493 |
3 |
SE495 |
| 2 |
SE494 |
4 |
SE496 |
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
15 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 85 °C |
| Housing Material |
Phenolic |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
