Technical Specifications |
| |
|
|
| |
|

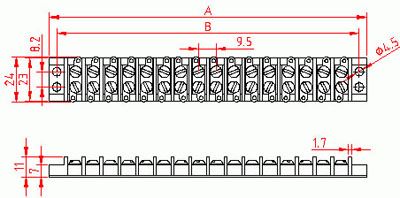

| SE474 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power.
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc. |
| Features |
| Insert Moulded Brass Bush in Housing , Brass Screws Nickel Plated, Rigid Design, |
| Also available in |
| 2 WAY |
SE470 |
10 WAY |
SE478 |
| 3 WAY |
SE471 |
11 WAY |
SE479 |
| 4 WAY |
SE472 |
12 WAY |
SE480 |
| 5 WAY |
SE473 |
13 WAY |
SE481 |
| 6 WAY |
SE474 |
14 WAY |
SE482 |
| 7 WAY |
SE475 |
15 WAY |
SE483 |
| 8 WAY |
SE476 |
16 WAY |
SE484 |
| 9 WAY |
SE477 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|

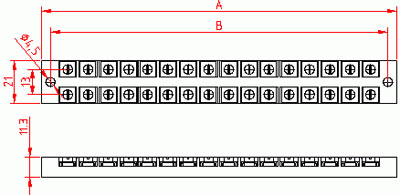

| SE522 |
| Description |
Available in 2, 3, 4, 5, 6, 8, 10, 12 & 16 no of ways. Also
available in 30A, and 60A, Series. |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
| Features |
| Nickel Plated Screws, Nickel plated wire retainers |
| Also available in |
| 2 WAY |
SE518 |
8 WAY |
SE524 |
| 3 WAY |
SE519 |
10 WAY |
SE526 |
| 4 WAY |
SE520 |
12 WAY |
SE527 |
| 5 WAY |
SE521 |
16WAY |
SE528 |
| 6 WAY |
SE522 |
|
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
| |
|
| SE530 |
| Description |
Available in 2, 3, 4, 5, 6, 8, 10, 12 & no of ways. Also
available in 15A, and 60A, Series. |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
| Features |
| Nickel plated wire retainers ,Nickel Plated Screws |
| Also available in |
| 2 WAY |
SE529 |
6WAY |
SE533 |
| 3 WAY |
SE530 |
8 WAY |
SE534 |
| 4 WAY |
SE531 |
10 WAY |
SE535 |
| 5 WAY |
SE532 |
12WAY |
SE536 |
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
