Products / Terminals |
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
| |
|

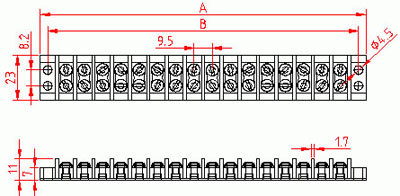

| SE434 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power.
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc.
|
| Features |
Brass Screws Nickel Plated, Insert Moulded Brass Bush
in Housing , Rigid Design |
| Also available in |
| 2 WAY |
SE430 |
10 WAY |
SE438 |
| 3 WAY |
SE431 |
11 WAY |
SE439 |
| 4 WAY |
SE432 |
12 WAY |
SE440 |
| 5 WAY |
SE433 |
13 WAY |
SE441 |
| 6 WAY |
SE434 |
14 WAY |
SE442 |
| 7 WAY |
SE435 |
15 WAY |
SE443 |
| 8 WAY |
SE436 |
16 WAY |
SE444 |
| 9 WAY |
SE437 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|

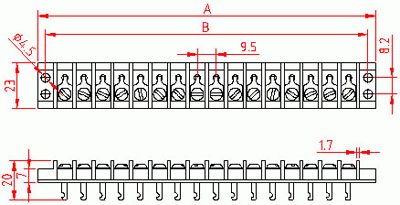

| SE354 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc.
|
| Features |
Back Feed Soldering, Insert Moulded Brass Bush in Housing
Rigid Design, Brass Screws Nickel plated |
| Also available in |
| 2 WAY |
SE350 |
10 WAY |
SE358 |
| 3 WAY |
SE351 |
11 WAY |
SE359 |
| 4 WAY |
SE352 |
12 WAY |
SE360 |
| 5 WAY |
SE353 |
13 WAY |
SE361 |
| 6 WAY |
SE354 |
14 WAY |
SE362 |
| 7 WAY |
SE355 |
15 WAY |
SE363 |
| 8 WAY |
SE356 |
16 WAY |
SE364 |
| 9 WAY |
SE357 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
| |
|

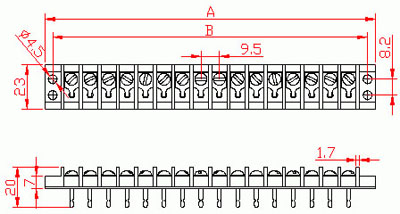

| SE374 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc.
|
| Features |
| Rigid Design, Brass Screws Nickel plated, Insert Moulded Brass Bush in Housing , Back Feed Soldering, |
| Also available in |
| 2 WAY |
SE370 |
10 WAY |
SE378 |
| 3 WAY |
SE371 |
11 WAY |
SE379 |
| 4 WAY |
SE372 |
12 WAY |
SE380 |
| 5 WAY |
SE373 |
13 WAY |
SE381 |
| 6 WAY |
SE374 |
14 WAY |
SE382 |
| 7 WAY |
SE375 |
15 WAY |
SE383 |
| 8 WAY |
SE376 |
16 WAY |
SE384 |
| 9 WAY |
SE377 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
