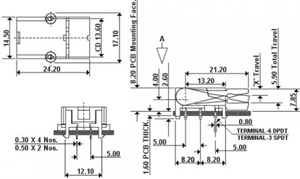

| Push
Button Switches - EHS-1 |
|
| |
|
 |
` |
| |
|
|
|
| |
|

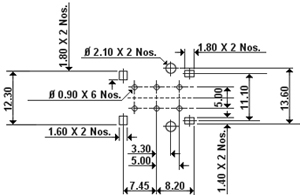

PCB Hole Layout |
|
| |
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
Time Lag Diagram |
|
| |
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
Terminal Diagram |
|
| |
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
Description |
|
| |
|
Click |
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
| |
|
| Parameter |
Value |
| Contact &
Voltage Ratings |
0.2A, 48 V DC |
| Contact
Arrangement |
2NO 2NC |
| Contact
Resistance(Max Initial) |
50 m Ohms |
| Electrical
Life |
1,00,000 Cycles |
| H. V. Breakdown
Test |
1 KVAC For 1 minute |
| Insulation
Resistance at 500V DC (Min) |
100 M Ohms |
| Material -
Body |
PBT / Nylon |
| Material - Cover
& Lever |
Polyacetal |
| Material -
Terminals |
Brass, Silver plated |
| Mechanical
Life |
3,00,000 Cycles Min. |
| Mounting |
PCB-type |
| Operating
Force |
60 +/- 10 gf . |
| Permissible Temp
For Soldering |
270 deg. C., 5 sec. Max . |
| Permissible Temp
For With/Without Load |
-20 deg. C. to +85 deg. C
. |
| Switch
Type |
Momentary On |
| Terminal
Style |
Solder-type |
| Test
Specification |
IEC - 1020 - 4
. |
|
| |
|
|
| |
|

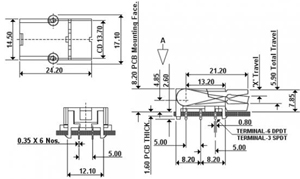

| Push
Button Switches - EHS-2 |
|
| |
|
 |
 |
| |
|
|
|
|
| |
|

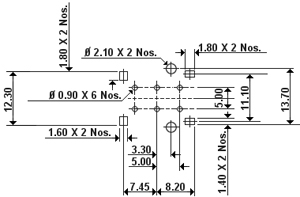

PCB Hole Layout |
|
| |
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
Time Lag Diagram |
|
| |
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
Terminal Diagram |
|
| |
|
 |
|
| |
|
|
|
| |
|
Description |
|
| |
|
Non-Click |
| |
|
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|
| Parameter |
Value |
| Contact &
Voltage Ratings |
0.2A, 48 V DC |
| Contact
Arrangement |
2NO, 2NC |
| Contact
Resistance(Max Initial) |
50 m Ohms |
| Electrical
Life |
1,00,000 Cycles |
| H. V. Breakdown
Test |
1 KVAC For 1 minute |
| Insulation
Resistance at 500V DC (Min) |
100 M Ohms |
| Material -
Body |
PBT / Nylon |
| Material - Cover
& Lever |
Polyacetal |
| Material -
Terminals |
Brass, Silver plated |
| Mechanical
Life |
3,00,000 Cycles Min . |
| Mounting |
PCB-type |
| Operating
Force |
60 +/- 10 gf . |
| Permissible Temp
For Soldering |
270 deg. C., 5 sec. Max . |
| Permissible Temp
For With/Without Load |
-20 deg. C. to +85 deg. C
. |
| Switch
Type |
Momentary On |
| Terminal
Style |
Solder-type |
| Test
Specification |
IEC - 1020 - 4
. |
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
|
