| Push
Button Switches - PBS-2(R) |
|
| |
|
 |
 |
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|
| Parameter |
Value |
| Colours Available
For Housing |
Bk |
| Colours Available
For Rocker |
Rd/Bk/Gn/Yl/Bl/Wh . |
| Contact &
Voltage Ratings |
3 A, 250V AC |
| Contact
Arrangement |
SPST |
| Contact
Resistance(Max Initial) |
10 m Ohms |
| Electrical
Life |
10,000 Cycles . |
| H. V. Breakdown
Test |
1 KVAC For 1 minute |
| Insulation
Resistance at 500V DC (Min) |
100 M Ohms |
| Material -
Body |
Nylon |
| Material -
Terminals |
Copper, Silver plated |
| Mechanical
Life |
50,000 Cycles |
| Mounting |
Panel, Screw-type |
| Permissible Temp
For Soldering |
270 deg. C for 5 sec. max. |
| Permissible Temp
For With/Without Load |
-20 deg. C to +85 deg. C |
| Product
Weight |
4.6 gms |
| Switch
Type |
Latched |
| Terminal
Style |
Solder-type |
|
| |
|
|
| |
|
| Push
Button Switches -PBS-2(S) |
|
| |
|
 |
 |
| |
|
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|
| Parameter |
Value |
| Colours Available
For Housing |
Bk |
| Colours Available
For Rocker |
Rd / Bk / Gn / Yl / Bl /
Wh |
| Contact &
Voltage Ratings |
3 A, 250V AC |
| Contact
Arrangement |
SPST |
| Contact
Resistance(Max Initial) |
10 m Ohms |
| Electrical
Life |
10000 Cycles |
| H. V. Breakdown
Test |
1.5 KVAC For 1 minute |
| Insulation
Resistance at 500V DC (Min) |
100 M Ohms |
| Material -
Body |
Nylon |
| Material -
Terminals |
Copper, Silver plated |
| Mechanical
Life |
50,000 Cycles |
| Mounting |
Panel, Screw-type |
| Permissible Temp
For Soldering |
270 deg. C for 5 sec. max. |
| Permissible Temp
For With/Without Load |
-20 deg. C to +85 deg. C |
| Product
Weight |
4.6 gms. |
| Switch
Type |
Latched |
| Terminal
Style |
Solder-type |
|
| |
|
|
|
| |
|

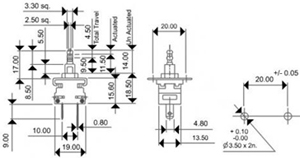

| Push
Button Switches - PBS-32 |
|
| |
|
 |
 |
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
|
| |
|
| Parameter |
Value |
| Contact &
Voltage Ratings |
10(4) Amps, 250V AC |
| Contact
Arrangement |
SPST |
| Contact
Resistance(Max Initial) |
10 m Ohms Max. |
| Electrical
Life |
50,000 Cycles |
| H. V. Breakdown
Test |
4 KV(Pole to Body) - 1 KV (Pole to Pole) |
| Insulation
Resistance at 500V DC (Min) |
100 M Ohms Min. |
| Material -
Body |
Nylon |
| Material -
Terminals |
Brass |
| Mechanical
Life |
1,00,000 Cycles |
| Mounting |
Panel, Screw-type |
| Operating
Force |
700 +/- 150 gms. |
| Permissible Temp
For Soldering |
270 deg. C for 5 sec. Max. |
| Permissible Temp
For With/Without Load |
-20 deg. C to + 85 deg. C |
| Switch
Type |
Latched |
| Terminal
Style |
Solder-type / Fast-on 4.8 x
0.8 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
