SWITCHES |
| |
| |
|
| |
|
| |
|
|
|
|
|
| |
|
|
| |
|
.jpg) |
|
|
|
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
20 m Ohms |
| Electrical
Life |
10000 Cycles / Pole |
| H. V. Break Down
Test |
1.5 KVAC for 1 minute |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms |
| Material
Body |
Nylon |
| Material Current
Carrying Parts |
Copeer Alloy, Silver
Plated |
| Material
Shaft |
Nylon |
| Mounting |
Panel, Screw-type |
| No. of
Poles |
4 |
| No. of
Ways |
1 to 3 |
| Permissible Temp
For With/Without Load |
-20Deg. C To +85Deg. C . |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. max. |
| Reference
Standard |
IEC-1058-1(1996) . |
| Terminals(Min) |
Solder-type |
| Voltage
Rating |
150mA, 250V
AC |
|
| |
|
|
| |
|
|
| |
|
 |
|
 |
| |
|
|
| |
|

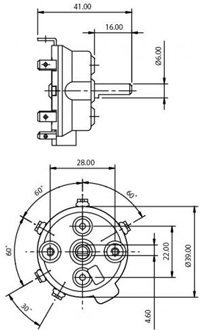

Technical Specifications |
| |
|
|
|
|
| |
|
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
10 m Ohms Max. |
| Electrical
Life |
10,000 Cycles |
| H. V. Break Down
Test |
2 KV AC |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms Min. |
| Mounting |
Screw Mounting,M4 Screw |
| No. of
Poles |
3 |
| No. of
Ways |
4 |
| Permissible Temp
For With/Without Load |
-20 deg. C to + 85 deg. C |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. Max. |
| Reference
Standard |
IEC-1058-1(1996) |
| Terminals(Min) |
Snap on type,4.8x0.80 |
| Voltage
Rating |
4A 250V AC |
|
| |
|
|
|
| |
|
|
| |
|
| |
|
 |
|
 |
| |
|
|
|
|
|
|
| |
|
Description |
| |
|
|
| |
|

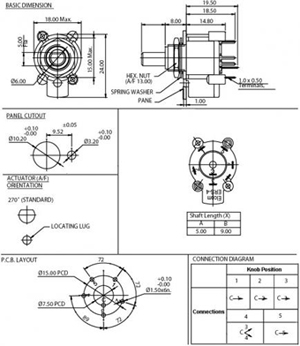

Rotary Switch 1 Pole 5 Way, Shorting
(Make before Break) |
| |
|
|
| |
|
Technical Specifications |
| |
|
| |
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
20 m Ohms Max. |
| Electrical
Life |
20,000 Cycles Min. |
| H. V. Break Down
Test |
1.5 KV AC |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms Min. |
| Mounting |
Panel Mounting / PCB Mounting |
| No. of
Poles |
1 |
| No. of
Ways |
5 |
| Permissible Temp
For With/Without Load |
-20 deg. C to + 85 deg. C |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. Max. |
| Reference
Standard |
IEC-1058-1 |
| Terminals(Min) |
Solder-Type/PCB Type |
|
| |
|
|
| |
|
|
|
