Switchboard instruments are designed to an
internationally accepted standard. The dimensions comply
with the
requirements of DIN 43700 and scales with DIN 43802. The performance
confirms to IS
1248-83/93 The Cases are
made of flame-retardardant plastic material which has high tracking
index
for maximum electrical strength and safety.
Key Features :
1] Compact in size (build in depth 33mm).
2] Rugged movement ensures sustained accuracy and reliability.
3] Square bezel permits edge to edge mounting, allowing maximum use of panel space
4] Clear Scaling for easy reading

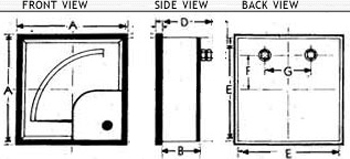

| Dimensions in mm | |||||||
| Model | A | B | C | D | E | F | G |
| SIF 48 | 48 | 33 | 6 | 40 | 42 | - | 18.5 |
| SIF 72 | 72 | 33 | 6 | 41 | 60 | 18 | 38 |
| SIF 96 | 96 | 33 | 6 | 41 | 90 | 30 | 40 |
| Model | Class of Accuracy | Panel Cutout | |||||
| SIF 48 | 2.0 | 43x43 | |||||
| SIF 72 | 1.5 | 67x67 | |||||
| SIF 96 | 1.5 | 91x91 | |||||
| Meters - Pointer type Frequency meter |
Key Features :
1] Vibrating Reed type
frequency meters are available in size 72 x 72 & 96 x
96mm
suitable 110V, 230V & 440V AC Operation.
2] Scale 45-50-55 Hz.
3] Model : SM- 72, SM- 96
| Dimensions in mm | |||||||
| Model | A | B | C | D | E | F | G |
| SM 72 | 72 | 33 | 6 | 41 | 66 | 18 | 38 |
| SM 96 | 96 | 33 | 6 | 41 | 90 | 30 | 40 |
| Model | Class of Accuracy | Panel Cutout | |||||
| SM 72 | 1.5 | 67x67 | |||||
| SM 96 | 1.5 | 91x91 | |||||
| Meters - Digital Panel Meter |
BEEMET's DPM-800
series are high performance 3 1/2 digit LED display panel meters,
housed in rugged in plastic cases to fit into the industry
standard cutout.
Key Features :
1] The units are powered by 220V AC power source.
The series consist of models to measure DCV, DCA, ACV,
ACA &
are designed to obtain input from current transformers &
potential transformer & current shunts
2] Display - 14.2mm LED Red - standard or Green -
optional.Automatic
zero & polarity. High input
impedance > 100M Ohms.
3] DIMENSIONS : 96 X 48 X 125mm
| Meters -Educational Meter |
Key Features :
1] BEEMET Portable Desk Top
instruments are specially designed
for easy use in educational
institutions , laboratories & workshops.
2] Meters are inclined for easy reading & mounted on ABS
plastic moulded
desk type stand with connections on top
terminals.
