The CF range of two instruments
( Size 2 1/2", 3 1/2" ) provides a
contemporary
styled yet cost effective quality solution for various
meter application.
Key Features :
1] Tough one piece moulded acrylic front giving shadow free dial
illumination
and an elegant crystal clear appearance capable of
fitting into modern
equipment styles & colour.
2]Choice of coloured masks for lower area available
3] Strong rear body case moulding of thermosetting plastic.
4] High stability moving iron movement with pivot, jewel & spring

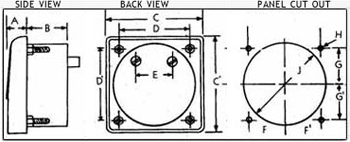

| Dimensions in mm | Panel Cutout (mm) | ||||||
| Model | A | B | C | D | C' | D' | E |
| ACF 65 | 12 | 27 | 65 | 48 | 65 | 48 | 25 |
| ACF 83 | 15 | 25 | 83 | 57 | 83 | 57 | 38 |
| Model | F | F' | G | G' | H | J | |
| ACF 65 | 24 | 24 | 24 | 24 | 4 | 55 | |
| ACF 83 | 28.5 | 28.5 | 28.5 | 28.5 | 3.5 | 67 | |
| Meters - ARM Group |
The RM range of three back of panel mounting
instruments is uniquely styled to
allow maximum use of front panel
space.
Key Features :
1] Rear mounting gives complete safety in transit & enhances
the outlook of the panel.
2] ARM-106 has a glass front whereas all the other models have
clear acrylic fronts.
3] Only the meter dial is visible, providing clear & well defined scale markings.
4] High stability moving iron movement with pivot, jewel & spring

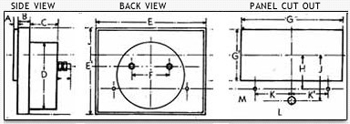

| Dimensions in mm | Panel Cutout (mm) | |||||||
| Model | A | B | C | D | E | E' | F | |
| ARM 65 | 2.5 | 10 | 27 | 55 | 65 | 65 | 25 | |
| ARM 83 | 3 | 10.5 | 25 | 65 | 83 | 83 | 38 | |
| ARM 106 | 4 | 12 | 27 | 65 | 106 | 84 | 36 | |
| Model | G | G' | H | J | K | K' | L | M |
| ARM 65 | 62.5 | 32.5 | 38 | 36 | 24 | 24 | 7 | 3.5 |
| ARM 83 | 76 | 38 | 35 | 41.5 | 35 | 35 | 7 | 3 |
| ARM 106 | 98.5 | 50 | 33 | 44 | 35 | 35 | 7 | 3 |
| Meters - DCF Group |
The CF range of three instruments ( Size 2 1/2", 3 1/2", 4 1/2" ) provides a
contemporary styled yet cost effective quality solution for various
meter application
Key Features :
1] Tough one piece moulded acrylic front giving shadow free dial
illumination and an elegant crystal
clear appearance capable of
fitting into modern equipment styles & colour.
2] Choice of coloured masks for lower area available.
3] Strong rear body case moulding of thermosetting plastic.
4] High stability moving iron movement with pivot, jewel & spring
| Dimensions in mm | Panel Cutout (mm) | ||||||
| Model | A | B | C | C' | D | D' | E |
| DCF 65 | 12 | 27 | 65 | 48 | 48 | 48 | 25 |
| DCF 83 | 15 | 25 | 83 | 57 | 57 | 57 | 38 |
| DCF 120 | 16 | 27 | 120 | 102 | 102 | 90 | 38 |
| Model | F | F' | G | G' | H | J | |
| DCF 65 | 24 | 24 | 24 | 24 | 4 | 55 | |
| DCF 83 | 28.5 | 28.5 | 28.5 | 28.5 | 3.5 | 67 | |
| DCF 120 | 51 | 51 | 51 | 39 | 3.5 | 70 | |
