    Products / RFI / EMI Filters


Variety - 1 Variety - 2


Variety - 2
    High Performnace Power Line Filters in Deep Drawn Metal Box type 660


Specification
Rated Voltage 230V, 50HZ ( 440V,50Hz On request.)
Rated Current IA, 3A, 6A
Test Voltage 1500v ac between Main terminals Shorted together & earth for 60 Secs.
Insulation Resistance > 20 m ohm between mains terminals shorted together & earth at 500 VDC
Leakage Current 2 * 0.2 mA max at 230V, 50Hz
Voltage Drop 1 V rms Max
Operating Temperature Range 0 to 85 Celsius
Surge Suppressor Clamping Voltage 715 V Response Time 100n Sec.
Insertion Loss
Current Ratings AMPS   1 3 6
Common Mode Insertion Loss
(dB in a 50 ohm system)
FREQUENCY-MHz		 0.15 >40 >35 >32
0.5 >50 >40 >42
1.0 >60 >60 >55
5.0 >65 >65 >55
10 >65 >65 >55
30 >65 >65 >55
Circuit Diagram
Mechanical Diagram All Dimensions In MM

    High Current Power Line Filters In Deep Drawn Box


Specification
Rated Voltage 230V, 50HZ (440V,50 Hz On request.)
Rated Current 20A, 30A & 40A
Test Voltage 1500v ac between Main terminals Shorted together & earth for 60 Sec's.
Insulation Resistance > 20 m ohm between mains terminals shorted together & earth at 500 V DC
Leakage Current 2 * 0.2 mA max at 230V, 50Hz
Voltage Drop 1 V ms Max
Operating Temperature Range 0 to 85 Celsius
Surge Suppressor Clamping Voltage 715V Response Time 100n Sec.
Insertion Loss
Current Ratings AMPS   20 30
Common Mode Insertion Loss
(dB in a 50 ohm system)
FREQUENCY-MHz		 0.15 >10 >8
0.5 >20 >18
1.0 >30 >25
5.0 >40 >35
10 >45 >40
30 >50 >45
Circuit Diagram

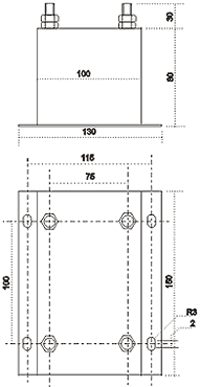

Mechanical Diagram All Dimensions In MM

    High Current Power Line Filters


Specification
Rated Voltage 230V, 50HZ ( 440V,50Hz On request.)
Rated Current 40IA, 50A, 60A
Test Voltage 1500v ac between Main terminals Shorted together & earth for 60 Secs.
Insulation Resistance > 20 m ohm between mains terminals shorted together & earth at 500 VDC
Leakage Current 2 * 0.2 mA max at 230V, 50Hz
Voltage Drop 1 V rms Max
Operating Temperature Range 0 to 85 Celsius
Surge Suppressor Clamping Voltage 715 V Response Time 100n Sec.
Insertion Loss
Current Ratings AMPS   40 60
Common Mode Insertion Loss
(dB in a 50 ohm system)
FREQUENCY-MHz		 0.15 >20 >20
0.5 >30 >25
1.0 >40 >35
5.0 >40 >40
10 >40 >40
30 >30 >30
Circuit Diagram
Mechanical Diagram All Dimensions In MM
