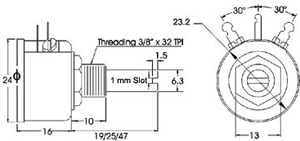

PotentioMeters -V. R.1


    Technical Specifications


Specifications
Resistance Range 10W to 25K W
Resistance Tolerance Standard + 10 %, Special as per requirement
End Resistance  2 W or 0.1 % Which ever is greater
TCR of Resistance Wire Maximum 150 ppm / °C
Power Ratting 1 Watt @ 40 °C
Maximum Working Voltage

250 VDC
Insulation Resistance  100 Meg.W @ 500 VDC
Voltage Proof  1000 VAC for 1 min at sea level
Effective Angle of Rotation 265 + 15 °
Mechanical Angle of Rotation

285 + 15 °
Rotational Life Expectancy

20,000 Cycle
Temperature Range  0 to 70 ° C
Maximum Number of Ganges

Three
Standard Resistance Values

10, 25, 50, 100, 250, 500, 1K, 2K, 2K5, 3K, 3K5,
5K, 10K, 15K, 20K, 25K,30K


PotentioMeters -V. R.1 Ganged

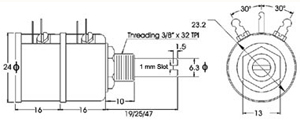

V. R.1 Dual
V. R.1 Tripal

    Technical Specifications


Specifications
Resistance Range 10W to 25K W
Resistance Tolerance Standard + 10 %, Special as per requirement
End Resistance  2 W or 0.1 % Which ever is greater
TCR of Resistance Wire Maximum 150 ppm / °C
Power Ratting 1 Watt @ 40 °C
Maximum Working Voltage

250 VDC
Insulation Resistance  100 Meg.W @ 500 VDC
Voltage Proof  1000 VAC for 1 min at sea level
Effective Angle of Rotation 265 + 15 °
Mechanical Angle of Rotation

285 + 15 °
Rotational Life Expectancy

20,000 Cycle
Temperature Range  0 to 70 ° C
Maximum Number of Ganges

Three
Standard Resistance Values

10, 25, 50, 100, 250, 500, 1K, 2K, 2K5, 3K, 3K5,
5K, 10K, 15K, 20K, 25K,30K


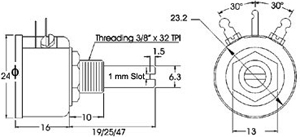

PotentioMeters -V. R.3


    Technical Specifications


Specifications
Resistance Range 10W to 100 K W
Resistance Tolerance Standard + 10 %, Special as per requirement
End Resistance  2 W or 0.1 % Which ever is greater
TCR of Resistance Wire Maximum 150 ppm / °C
Power Ratting 3 Watt @ 40 °C
Maximum Working Voltage

500 VDC
Insulation Resistance  200 Meg.W @ 500 VDC
Voltage Proof  1000 VAC for 1 min at sea level
Effective Angle of Rotation 275 + 15 °
Mechanical Angle of Rotation

285 + 15 °
Rotational Life Expectancy

20,000 Cycle
Temperature Range  0 to 70 ° C
Standard Resistance Values

10, 25, 50, 100, 150, 250, 500, 1K, 2K, 3K,
5K, 10K, 20K, 25K, 50K, 100K

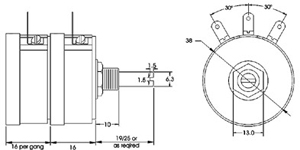

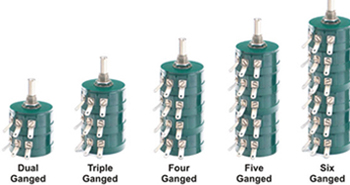

PotentioMeters -V. R. 3 Ganged




    Technical Specifications


Specifications
Resistance Range 10W to 100 K W
Resistance Tolerance Standard + 10 %, Special as per requirement
End Resistance  2 W or 0.1 % Which ever is greater
TCR of Resistance Wire Maximum 150 ppm / °C
Power Ratting 3 Watt @ 40 °C
Maximum Working Voltage

500 VDC
Insulation Resistance  200 Meg.W @ 500 VDC
Voltage Proof  1000 VAC for 1 min at sea level
Effective Angle of Rotation 275 + 15 °
Mechanical Angle of Rotation

285 + 15 °
Rotational Life Expectancy

20,000 Cycle
Temperature Range  0 to 70 ° C
Maximum Number of Ganges Six standard, Eight Special
Standard Resistance Values

10, 25, 50, 100, 250, 500, 1K, 2K, 3K,
5K, 10K, 15K, 20K, 25K, 50K, 100K
