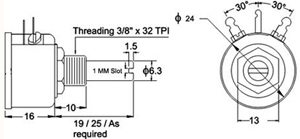

| PotentioMeters -R.W-1 |
| Specifications | |
| Resistance Range | 10 W to 25K W |
| Standard Values | 10,25,50,100,150,200,250,500,1K,1K5, 2K,2K5,3K,5K,10K,20K,25K, |
| Resistance Tolerance | + 10 % Standard, + 5 % special |
| Power Ratting | 1 Watt @ 40 ° C |
| End Resistance | 0.2 W or 0.02 % which ever is > |
| Effective Angle of Rot. | 265° + 15° |
| Maximum Working Vol. | 500 VDC |
| Insulation Resistance | 300 Meg. W @ 500 VDC |
| Voltage Proof | 1000 VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/ ° C |
| Mechanical Angle of Rot. | 285° + 15° |
| Rotational Life Expectancy | 20,000 Cycles |
| Temperature Range | 0 - 70° C. |

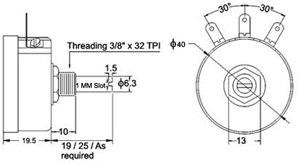

| PotentioMeters -R.W-3 |
| Specifications | |
| Resistance Range | 10 W to 100K W |
| Standard Values | 10,25,50,100,150,200,250,500, 1K,1K5, 2K,2K5,3K,5K,10K,20K,25K,50K,100K |
| Resistance Tolerance | + 10 % Standard, + 5 % special |
| Power Ratting | 3 Watt @ 40 ° C |
| End Resistance | 0.2 W or 0.02 % which ever is > |
| Effective Angle of Rot. | 265° + 15° |
| Maximum Working Vol. | 250 VDC |
| Insulation Resistance | 200 Meg. W @ 500 VDC |
| Voltage Proof | 1000 VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/ ° C |
| Mechanical Angle of Rot. | 285° + 15° |
| Rotational Life Expectancy | 20,000 Cycles |
| Temperature Range | 0 - 70° C. |

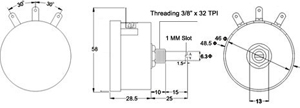

| PotentioMeters -R.W-5 |
| Specifications | |
| Resistance Range | 50 W to 50K W |
| Standard Values | 50,100,200,250,500,1K,1K5, 2K, 2K5,3K,5K,10K,20K,25K & 50K |
| Resistance Tolerance | + 10 % Standard, + 5 % special |
| Power Ratting | 5 Watt @ 40 ° C |
| End Resistance | 0.2 W or 0.02 % which ever is > |
| Effective Angle of Rot. | 285° + 15° |
| Maximum Working Vol. | 500 VDC |
| Insulation Resistance | 500 Meg. W @ 500 VDC |
| Voltage Proof | 1500 VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/ ° C |
| Mechanical Angle of Rot. | 290° + 15° |
| Rotational Life Expectancy | 20,000 Cycles |
| Temperature Range | 0 - 70° C. |

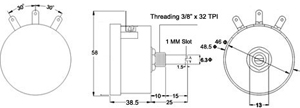

| PotentioMeters -R.W-7.5 |
| Specifications | |
| Resistance Range | 50 W to 50K W |
| Standard Values | 50,100,200,250,500,1K,1K5, 2K, 2K5,3K,5K,10K,20K,25K & 50K |
| Resistance Tolerance | + 10 % Standard, + 5 % special |
| Power Ratting | 7.5 Watt @ 40 ° C |
| End Resistance | 0.2 W or 0.02 % which ever is > |
| Effective Angle of Rot. | 285° + 15° |
| Maximum Working Vol. | 500 VDC |
| Insulation Resistance | 500 Meg. W @ 500 VDC |
| Voltage Proof | 1500 VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/ ° C |
| Mechanical Angle of Rot. | 290° + 15° |
| Rotational Life Expectancy | 20,000 Cycles |
| Temperature Range | 0 - 70° C. |
