| Test | Publication | Procedure | Requirement |
| Impulse voltage | IEC 60384-14 EN 132400 |
According to Fig1 before endurance |
No permanent breakdown or flashover |
| Endurance | IEC 60384-14 EN 132400 |
According to Fig2 with V2=1000Vac , X : V1=1.25× RV Vac , Y : V1=1.7×RV Vac |
Voltage proof C , DF and insulation |
| Vibration | IEC 60068-2-6 Test Fc |
3 directions at 2 hours each 10 - 500Hz at 0.75 mm or 98 m/s2 |
No visible damage No open or short circuit |
| Bump | IEC 60068-2-29 Test Eb |
4000 bubps at 390 m/s2 |
No visible damage No open or short circuit |
| Change of temperature | IEC 60068-2-14 Test Na |
Upper and lower rated temperature 5 cycles |
No visible damage |
| Solderability | IEC 60068-2-20 Test Ta |
Solder globule method | Wetting time for dØ≦0.8＜1s for dØ＞0.8＜1.5s |
| Passive flammability | IEC 60384-14 EN 132400 |
Flame exposure time depending on severity |
3,10 or 30s burning time depending on flammability class |
| Active flammability | IEC 60384-14 EN 132400 |
According to Fig3 Surge pulses+ RV Vac |
No burning |
| Humidity | IEC 60068-2-3 Test Ca |
+40°C and 90-95 % RH 21 or 56 days |
Voltage proof C , DF and insulation |
| Across-the-line life test | UL1414 CSA C22.2 No.1 |
According to Fig4 120/240Vac , 60Hz + 5KV surge |
220/440 Vac , doubled 0.1sec each hour , 85°C |
Fig1 Impulse voltage Test |
Fig2 Endurance Test |
|
|
Fig 3 Active flammability Test |
Fig2 Across-the-line life Test |
|
|

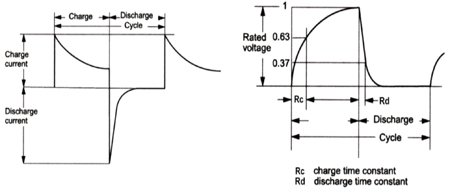

Fig 5 Charge and Discharge Test |
|
