| PARAMETERS |
SPECIFICATIONA |
| Frequency |
800~2500 MHz |
| Coupling |
10.0 dB |
| Insertion Loss |
≤ 0.8 dB |
| Coupling Loss |
≤0.46 dB |
| Ripple in-band |
≤ ± 0.8 dB |
| Directivity |
≥20 dB |
| VSWR |
≤1.2:1 |
| Impedance |
50Ω |
| PIM |
≤-140@+43dBm x 2 dBc |
| Connectors |
N (F) |
| Power Rating |
100 Watts |
| Temperature |
-40°C ~ + 70°C |

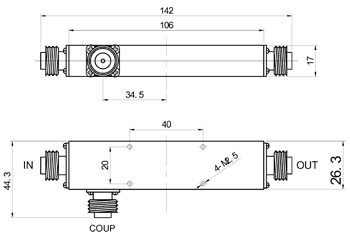

| Approx. Dimensions |
106 x 26.3 x 17 mm |
| Approx. Weight |
0.17 Kg |
|
|
| |
|
WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT |
|
|
| |
|
|
|
|
