Products  >  Directional Couplers   >  800~2500 MHz 100 Watts Directional coupler

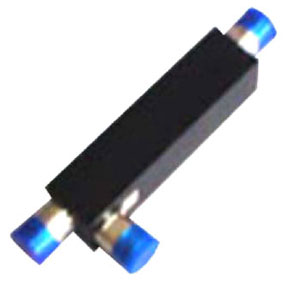

Model No. - MES 3800100DC-X




Description

MES 3800100DC X series Broadband100 Watts Directional Couplers are designed to decouple a defined part of the RF signal off the main through line.


This permits signal distribution of Wireless Systems with the required Signal strength.


A Coupler consists of a pair of strip lines approximately a Quarter wavelength long configured to provide the desired coupling


These are used in GSM, CDMA Indoor Distribution System WCDMA BAse Stations, Repeaters etc.

Features & Benefits

  • Broadband
  • Low Insertion Loss
  • Flat response
  • High Power Handling
  • Various coupling range from 5 dB to 20 dB
  • N type Conndector



WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
