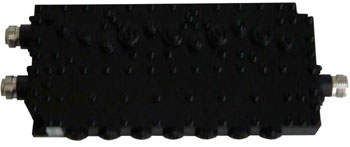

| Products > Duplexer > Point of Interface Model No. - MES 1800 / 2400 NX |
|
|
| Description These Duplexer are ideal for combining multiple forms of signals e.g. CDMA, GSM, DCS, 3G and WLAN. These are used for POI (Point of Interface ) Networks. Low insertion loss and high attenuation offer superior characteristics for Network Integrators |
|
|
PARAMETERS | SPECIFICATIONS |
|||||||
| Frequency Range (MHz) | 800~2200 |
2400~2500 | |||||||
| Band Width (MHz) | 1400 | 100 | |||||||
| Insertion Loss (dB) | ≤0.3 | ≤0.6 | |||||||
| Ripple in - band ( dB) | ≤0.2 | ≤0.3 | |||||||
| Stop-band Attenuation (dB) | ≥ 90@ CH2 | ≥ 90@ CH1 | |||||||
| Isolation (dB) | ≥ 90@ CH2 | ≥ 90@ CH1 | |||||||
| Return Loss (dB) | ≥ 18 | ||||||||
| Impedance (Ω) | 50 | ||||||||
| PIM (dBc) | ≤ -140@ + 43dBm x 2 | ||||||||
| Connector | N (F) | ||||||||
| Power Rating(Watts) | 100 | ||||||||
| Temperature | -25 ~ + 65 | ||||||||
| Dimensions(mm) | 216 X 75 x 22 | ||||||||
| Approx. Weight (Kg) | 1.25 | ||||||||
WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
