Products  >  Antennas  > GSM / UMTS Antenna

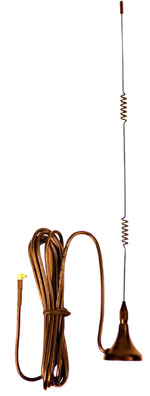

Model No. MES 68003X MMH



PARAMETERS SPECIFICATIONA
Frequency Range 824-960/1710-2200MHz
VSWR ≤1.5:1
Gain 3.5dBi
Impedance 50 Ω
Polarization Vertical
Maximum Input Power 60 Watts
Antenna Length Approx 90 mm
Connector

Huawei connector, SMA Male,

Sierra Wireless Connector etc.
Color Black
Mounting Magnetic Base
Cable RG 174
Working Temperature -20 ~ + 55 deg C

Products  >  Antennas  >  GSM / UMTS Antenna

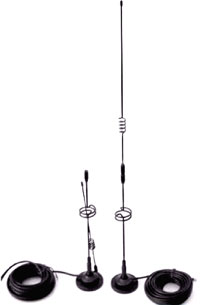

Model No. MES 68005X MMH


PARAMETERS SPECIFICATIONA
Frequency Range 824-960/1710-2200MHz
VSWR ≤1.5:1
Gain 3.5dBi
Impedance 50 Ω
Polarization Vertical
Maximum Input Power 60 Watts
Antenna Length Approx 90 mm
Connector

Huawei connector, SMA Male,

Sierra Wireless Connector etc.
Color Black
Mounting Magnetic Base
Cable RG -174
Working Temperature -20 ~ + 55 deg C

Products  >  Antennas  >  GSM / UMTS Antenna



Model No. MES 68009X MMH

PARAMETERS SPECIFICATIONA
Frequency Range 824-960/1710-2200 MHz
VSWR ≤1.5:1
Gain 9.0dBi
Impedance 50 Ω
Polarization Vertical
Maximum Input Power 60 Watts
Antenna Length Approx 720 mm
Connector

Huawei connector, SMA Male,

Sierra Wireless Connector etc.

Color Black
Mounting Magnetic Base
Cable RG 174
Working Temperature -20 ~ + 55 deg C
