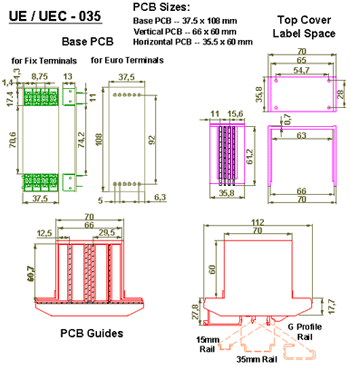

| Din Rail Enclosure -UEC / UE - 035 |
Key Features :
1] Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails
2] Modular construction enables ease in design and servicing
3] Enclosures inside: 70 x 35 x 60 mm.
4] PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
5] PCB guides: Integral molded guides in all directions
6] Terminal Option: 12 Euro 5mm pitch OR 8 Fixed 3.75 mm pitch
7] Knockout blanks for individual terminal configuration in covers of Euro Terminal version
8]Top cover available with countersunk screws as option
| Enclosure Parts | |
| 1] Top cover |
6] Horizontal PCB |
| 2] End Piece |
7] Euro Terminals |
| 3] Foot Piece |
8] Fixed Terminals |
| 4] Base PCB |
9] Terminal Covers |
| 5] Vertical PCB |
|
| Material : | |
| Cover : ABS | Foot Piece : Nylon 6.6 |
| End Piece : Nylon | Colour : Light Gray |
| Ordering Informatiom | |
| UEC-035-00 | Enclosure with Euro Term. Covers (Last two digits indicate number of |
| UE-035 | Enclosure with Fixed 8 Term. |
| UEW-035 | Enclosure without Terminals & Terminal Covers |
| Accessories (Loose Parts) | |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 3 Pin |
| UBRH | High Bracket for Wall / Surface mounting. |
| UBRL | Low Bracket for Wall / Surface mounting. |
| PB-035 | Base PCB (for Prototype making) |
| RL-035 | Rail Piece For Wall Mounting |

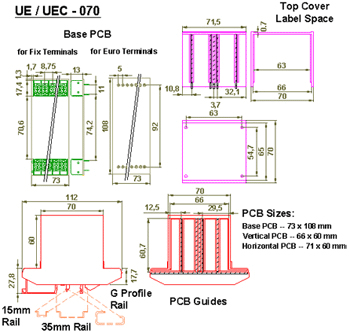

| Din Rail Enclosure -UEC / UE - 070 |
Key Features :
1] Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails
2] Modular construction enables ease in design and servicing
3] Enclosures inside: 70 x 70 x 60 mm.
4] PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
5] PCB guides: Integral molded guides in all directions
6]Terminal Option: 24 Euro 5mm pitch OR 16 Fixed 3.75 mm pitchh
7] Knockout blanks for individual terminal configuration in covers of Euro Terminal version
8]Top cover available with countersunk screws as option
| Enclosure Parts | |
| 1] Top cover |
6] Horizontal PCB |
| 2] End Piece |
7] Euro Terminals |
| 3] Foot Piece |
8] Fixed Terminals |
| 4] Base PCB |
9] Terminal Covers |
| 5] Vertical PCB |
|
| Material : | |
| Cover : ABS | Foot Piece : Nylon 6.6 |
| End Piece : Nylon | Colour : Light Gray |
| Ordering Informatiom | |
| UEC-070-00 | Enclosure with Euro Term. Covers (Last two digits indicate number of |
| UE-070 | Enclosure with Fixed 16 Term. |
| UEW-070 | Enclosure without Terminals & Terminal Covers |
| Accessories (Loose Parts) | |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 3 Pin |
| UBRH | High Bracket for Wall / Surface mounting. |
| UBRL | Low Bracket for Wall / Surface mounting. |
| PB-070 | Base PCB (for Prototype making) |
| RL-070 | Rail Piece For Wall Mounting |

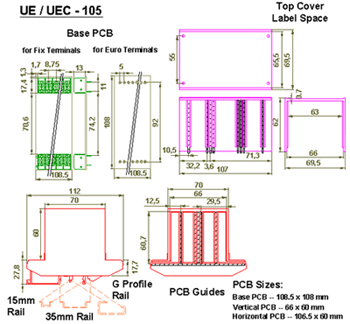

| Din Rail Enclosure -UEC / UE - 105 |
Key Features :
1] Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails.
2] Modular construction enables ease in design and servicing
3] Enclosures inside: 70 x 105 x 60 mm.
4] PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
5] PCB guides: Integral molded guides in all directions
6] Terminal Option: 36 Euro 5mm pitch OR 24 Fixed 3.75 mm pitch
7] Knockout blanks for individual terminal configuration in covers of Euro Terminal version
8]Top cover available with countersunk screws as option
| Enclosure Parts | |
| 1] Top cover |
6] Vertical PCB |
| 2] End Piece |
7]Horizontal PCB |
| 3] Foot Piece |
8] Euro Terminals |
| 4] Spacer Piece |
9] Fixed Terminals |
| 5] Base PCB |
10] Terminal Covers |
| Material : | |
| Cover : ABS | Foot Piece : Nylon 6.6 |
| End Piece : Nylon | Colour : Light Gray |
| Ordering Informatiom | |
| UEC-105-00 | Enclosure with Euro Term. Covers (Last two digits indicate number of |
| UE-105 | Enclosure with Fixed 24 Term. |
| UEW-105 | Enclosure without Terminals & Terminal Covers |
| Accessories (Loose Parts) | |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 3 Pin |
| UBRH | High Bracket for Wall / Surface mounting. |
| UBRL | Low Bracket for Wall / Surface mounting. |
| PB-105 | Base PCB (for Prototype making) |
| RL-105 | Rail Piece For Wall Mounting |
