Model No. - MES 61809-10 ODN

Description

MES 61809-10 ODN series high performance Omni Directional Antennas are specially designed for broadband applications in DECT 1880~1920 MHz frequency band multipoint applications. Heavy duty fiberglass radome is durable enough to stand up to over 60 m/sec wind loads. All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. No frequency adjustment is required. Mounting is easy with two extruded aluminum U-bolts which secure the antenna firmly to mast.

Application

High Gain mobile Omni directional antenna is designed for Point-to-multipoint transmissions over long distance and wide coverage.

PARAMETERS	SPECIFICATIONS
Frequency Range	1880~1920 MHz
Gain	9.0±1 dBi
VSWR	≤1.5: 1
Half Power Beamwidth	9.5°
Polarization	Vertical
Max. Power	100 Watts
Impedance	50Ω
Electrical Down tilt	10±3°
Connector	N (M)
Element Housing Material	Fiberglass

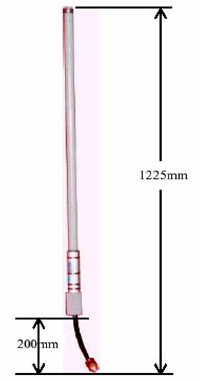

Length (Approx.)	1225 mm
Weight (Approx.)	0.500 kg
Max. Wind Velocity	161 Km/hr
Working Temperature	-40°C ~ +60°C
Lightning Protection	DC Ground

Note : Mounting Hardware and Brackets are supplied with Antenna
