Model No. - 68017 CN

Description

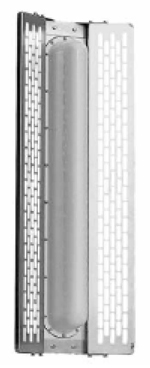

MES 68017 CN Corner Reflector Antenna is used within the frequency band of CDMA 800 MHz. During the operation, the antenna is spread open. But, during transportation the arms are closed and latched with the feed position. The approximate weight of the antenna is 9.0 Kg.

Application

The term Corner Reflector Antenna has been used to describe such an Antenna array. One of the objects of invention is to provide means of radiating a sharply defined directive radio field. Another objective is to provide an efficient,
compact, directive Antenna array and to provide a foldable reflector and Antenna array.

PARAMETERS	SPECIFICATIONS
Frequency Range	824~896 MHz
Gain	17.0 dBi
VSWR	≤1.5: 1
H-Plane Half Power Beamwidth	90°
E-Plane Half Power Beamwidth	6.5°
Front to Back Ratio	≥30 dB
Polarization	Vertica
Max. Power	500 Watts
Impedance	50 Ω
Electrical Down Tilt	0°
Connector	N (F), 7/16 DIN (F)
Radome Material	UV-protected ABS
Dimensions (Approx.)	1930 mm x 460 mm x 170 mm
Weight (Approx.)	9.0 kg
IM3	≤-107 dBm
Rated Wind Velocity	210 Km/hr
Diameter of Installation Pole	Φ50-Φ115 mm
Lightning Protection	Direct Ground

Note : Mounting Hardware and Brackets are supplied with Antenna

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
