Products  > Power Splitters Products   >  Cavity Design 2 Way Power Splitter


Model No. - MES 3800100-2NC




PARAMETERS SPECIFICATIONA
Frequency Range 800~2500 MHz
Division ratio 3.01 dB
Insertion Loss ≤ 3.26 dB
Ripple in band ≤ ±0.2 dB
Return Loss ≥ 20 dB
Amplitude Balance ≤ 0.2 dB
Phase Balance ≤ 5°
Impedance 50 Ω
PIM ≤-140@+43dBm×2 dBc
Connector N (F)
Power Rating 100 Watts
Temperature -30°C~+70°C

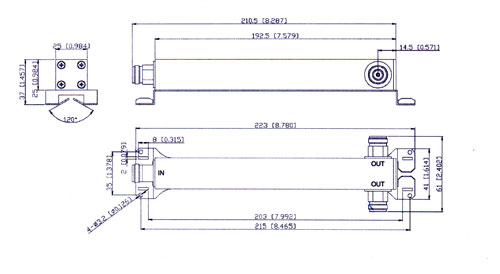

Dimensions (Approx.) 223×61×37 mm
Weight (Approx.) 0.4 kg


WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
