Products  >  Duplexer   >  Band Pass Duplexers

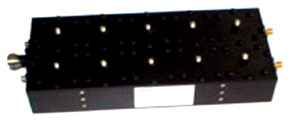

Model No. - MES 1XXX






Description

MES 1000 series Band Pass Duplexers are manufactured by precision milling of Aluminium block. After machining the cavities and lids including resonators made of copper are silver plated.


Typical Tx to Rx frequency Separation are :

9.5 / 14 / 25 MHz in lower bands i.e. 300-470 MHz
45 MHz or more in mid bands i.e. 600 & 900 MHz
61 / 90 / 161 MHz in higher bands i.e. 1.35 GHz upwards


Pass bandwidths typically 2, 3, 5, 8 MHz and higher are custom built as per the frequency band. Low insertion loss and high isolation are guaranteed. Field tuning is accomplished with silver plated tuning screws on the two sides of the Low pass & High pass Filters. The entire unit is given a coat of epoxy paint for additional protection.

Features :
  • Option of wide frequency range 330 MHz -3GHz in different frequency bands.
  • Tunable in entire band
  • Compact & Rugged design for use in Digital Microwaves Radios.
  • Extreme temperature working conditions - 30 to + 60 deg C
  • Excellent Electrical characteristics.
  • Choice of connectors BNC, SMA, TNC, N, UHF

Application :

These Duplexers are most commonly deployed as internal units suitably adapter for plug into Digital Microwave Radio terminals operating upto 25 Watts.

BAND PASS DUPLEXERS FOR INTERNAL USE IN DIGITAL UHF / MICROWAVE RADIOS


Model N0.

Freq. Band
(MHz)

Min. TX/ RX Split (MHz)

Insertion Loss Max.(dB)

Isolation Min (dB)

Return Loss Min (dB)

'Z'(Ω)

Power (Watts)

Group Delay (ns)

Dimensions
(HxWxD) mm

MES 1400 400~470 9.5/14 1.9 75 18 50 25 < 10 37 x 91 x 220
MES 1600 612~722 45 1.8 80 18 50 25 <50 32 x 118 x 158
MES 1800 795~895 45 1.5 80 18 50 10 < 20 35 x 100 x 136
MES 1900 890~960 45 1.5 80 18 50 10 < 20 34 x 150 x 192
MES 11500 1350~1550 48 / 61 1.3 80 18 50 10 < 50 34 x 87 x 215
MES 11800 1700~1900 90 1.3 85 18 50 10 < 20 34 x 76 x 213
MES 12000 2000~2300 161 1.3 80 18 50 10 < 10 34 x 72 x 187
MES 12300 2300~2700 161 1.3 80 18 50 10 < 10 34 x 60 x 187
Optional band : 320~370 MHz, 360~400 MHz, 710~845 MHz, 810~880 MHz, 3400~3800 MHz

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
