| Model |
MES 68009 PNE |
| Frequency Range |
860~900 MHz |
| Bandwidth |
40° |
| Gain |
9.0 dBi |
| Beamwidth |
E:60° H:60° |
| VSWR |
≤1.5 : 1 |
| Input Impedance |
50 ohms |
| F/B Ratio |
≥20 dB |
| Polarization |
Right Hand Circular Polarized |
| Maximum Power |
20 Watt |
| Connector |
SMA male or customized |
| Dimensions |
325×325×65 mm |
| Inside Dimensions |
280×280×33mm |
| Weight (approx) |
2.1 Kg |
| Operating temperature |
-40 to +70° C |
| Wind Velocity |
210 Km / hr |

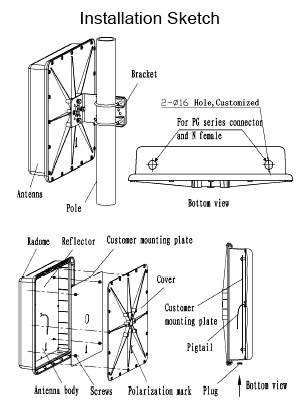

| Pole Dia |
φ40 to φ50 mm |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
