	Universal mounting in all three commercially available rails.
	EN 60 715 TH35, TH15 and G32 DIN rails
	Modular construction enables ease in design and servicing
	Enclosures inside: 70 x 35 x 60 mm.

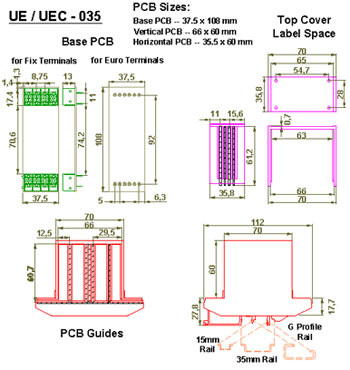

	PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
	PCB guides: Integral molded guides in all directions
	Terminal Option: 12 Euro 5mm pitch OR 8 Fixed 3.75 mm pitch
	Knockout blanks for individual terminal configuration in covers
	of Euro Terminal version
	Top cover available with countersunk screws as option

1] Top cover	6] Horizontal PCB
2] End Piece	7] Euro Terminals
3] Foot Piece	8] Fixed Terminals
4] Base PCB	9] Terminal Covers
5] Vertical PCB
Material :
Cover : ABS	Foot Piece : Nylon 6.6
End Piece : Nylon	Colour : Light Gray
Ordering Informatiom
UEC-035-00	Enclosure with Euro Term. Covers (Last two digits indicate number of terminal required 00 - No Term to 12 Max Term.
UE-035	Enclosure with Fixed 8 Term.
UEW-035	Enclosure without Terminals & Terminal Covers
Accessories (Loose Parts)
ET-0.5-2P	Euro Terminal 2 Pin
ET-0.5-3P	Euro Terminal 3 Pin
UBRH	High Bracket for Wall / Surface mounting.
UBRL	Low Bracket for Wall / Surface mounting.
PB-035	Base PCB (for Prototype making)
RL-035	Rail Piece For Wall Mounting
