Enclosures



    Technical Specifications



Code

Terminals

Dimensions

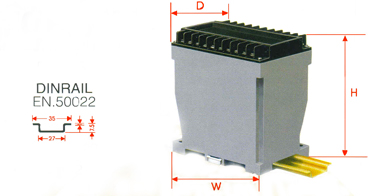

D - W - H

Label Size
Appx.

Weight
Appx.

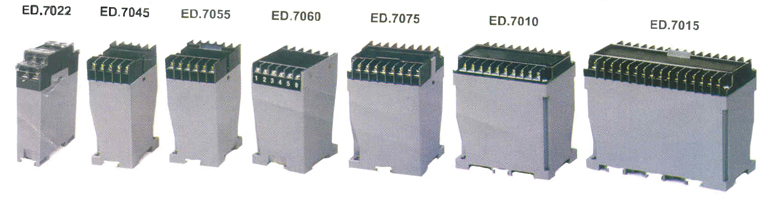

ED.7022

4+4

75-22-97

20 X 21 mm

62 gms.

ED.7045

5+5

70-45-112

41 X 36 mm

96 gms.

ED.7055

6+6

70-55-112

48 X 36 mm

98 gms.

ED.7060

6+6

70-60-112

54 X 45 mm

115 gms.

ED.7075

8+8

70-75-112

69 X 36 mm

130 gms.

ED.7010

10+10

70-100-112

95 X 36 mm

160 gms.

ED.7015

16+16

70-150-112

143 X 36 mm

250 gms.

    * All Dimensions are in mm





    Specification :


  • Moulded Material
    A Housing - ABS
    B Terminal Cover - ABS
    C Mounting Clip - Delrin / MS
  • Screws : (Combihead with Captivated Binder Washer) Steel / Ni-Plated
  • Terminals : Brass / Tin-Plated


Electrical (Terminal Cover) :

  • Voltage Breakdown : > 2500 volts AC
  • Insulation : > 100 meg. ohms
  • Current : 15 Amps.

Operating Temperature :

  • 60oc (Max)

IP Classification :

  • Housing : IP 40
  • Terminal Cover : Ip 10
