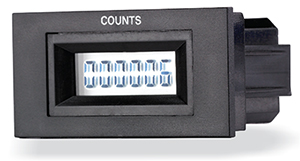

  Digital Counters
ic

FEATURES :
electronics components 6-digit LCD
electronics components In-built nonvolatile memory (EEPROM) offering exceptional reliability
electronics components Wide range of supply voltage
electronics components Remote reset
electronics components Available in 3 different shaped Bezels
  Low Power Consumption


electronic

Quick Enquiry
electronics components
Name :
Phone :
E-mail :
Requirement :




electronics components
  • Technical Specifications
  • ORDERING INFORMATION

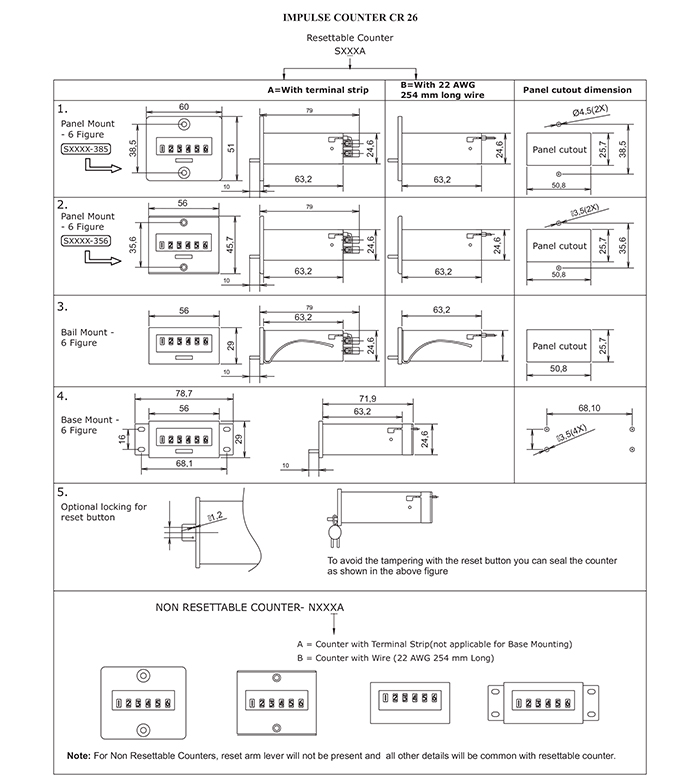

  • MOUNTING DIMENSION (mm)


Cat. No. Z72FBX ZJ2FBX ZH2FBX
Parameters
Supply Voltage ( ) 85 - 265 VAC 12 - 48 VAC/DC 10 - 80 VDC
Frequency 50/60 Hz 50/60 Hz N A
Power Consumption (Max.) 0.8 VA 0.4 W 0.6 W
Counting frequency 10Hz 10Hz 30Hz
Maximum Range 999999
Display Large 6-Digit display, easy to read
Resolution 1 Count
Reset Electrical
Memory Retention 100 Years
Operating Temperature
Storage Temperature		 - 10° C to +50° C
- 20° C to +65° C
Accuracy ± 1 Count
Humidity (Non Condensing) 95% (Rh)
Degree of Protection IP54
Enclosure UL94-V0
Terminals 1 & 2: Input Supply, 3: Count 4: Reset
Panel cut outs Round Bezel, 24 x 48 Bezel, Screw Mount Bezel
Mounting Flush/ Panel Mounting
Certification
Weight (unpacked) With Round Bezel - 35g, with 24 x 48 Bezel - 29 g, with Screw Mount Bezel - 31 g
EMI / EMC
Harmonic Current Emissions
ESD
Radiated Susceptibilty
Electrical Fast Transients
Surges
Conducted Susceptibilty
Voltage Dips & Interruptions (AC)
Conducted Emission
Radiated Emission

IEC 61000-3-2 Ed. 3.0 (2005-11) Class A
IEC 61000-4-2 Ed. 1.2 (2001-04) Level II
IEC 61000-4-3 Ed. 3.0 (2006-02) Level III
IEC 61000-4-4 Ed. 2.0 (2004-07) Level IV
IEC 61000-4-5 Ed. 2.0 (2005-11) Level IV
IEC 61000-4-6 Ed. 2.2 (2006-05) Level III
IEC 61000-4-11 Ed. 2.0 (2004-03) Level All 7 Levels
CISPR 14-1 Ed. 5.0 (2005-11) Class A
CISPR 14-1 Ed. 5.0 (2005-11) Class A
Environmental
Cold Heat
Dry Heat
Vibration
Repetitive Shock
Non-Repetitive Shock
IEC 60068-2-1 Ed. 6.0 (2007-03)
IEC 60068-2-2 Ed. 5.0 (2007-07)
IEC 60068-2-6 Ed. 7.0 (2007-12) 5g
IEC 60068-2-27 Ed. 4.0 (2008-02) 40g, 6ms
IEC 60068-2-27 Ed. 4.0 (2008-02) 30g, 15ms

ORDERING INFORMATION
Cat. No. Description
Z72FBX 85-265 VAC model
ZJ2FBX 12-48V AC/DC model
ZH2FBX 10-80V DC model
X A=Round Bezel, B=24x48 Bezel, C=Screw Mount Bezel


  electronics components
  Note: Other voltages will be made available upon request.
