Products  >  Directional Couplers   >  380~520 MHz(TETRA) Directional couplers

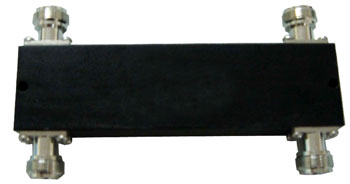

Model No. - MES 3380100DC-7




PARAMETERS SPECIFICATIONA
Frequency 380~520 MHz
Coupling 7.0 dB
Insertion Loss ≤ 1.5 dB
Ripple in-band < ± 1.0 dB
Directivity ≥20 dB
Return Loss ≥20 dB
Impedance 50Ω
PIM ≤-140@+43dBm x 2 dBc
Connectors N (F)
Power Rating 100 Watts
Temperature -30°C ~ + 70°C
Approx. Dimensions 131 x 35 x 20 mm
Approx. Weight 0.17 Kg


WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
