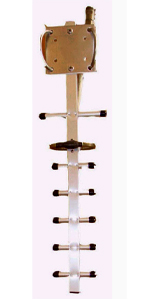

Model No. - MES 61810 YN

Description

MES 61810 YN series high performance Yagi Antennas features high gain and is ideally suited for directional applications operating in DECT 1880~1920 MHz Frequency band. The unique design of this Antenna allows it to be installed for either vertical or horizontal polarization.

Application

It is primarily designed for use in DECT band for boosting signal in both uplink and downlink by providing 10.0 dBi gain. Made in excellent finish, withstanding tough environment and at low cost it provides high performance. These antennas can be easily mounted on poles at subscriber ends. These are available with choice of connectors i.e. N, TNC, SMA.
For convenience of installation these can also be supplied with 15 Mtr cable to extend to FWTs. The antenna is supplied with Stainless Steel mounting brackets & fasteners.

PARAMETERS	SPECIFICATIONS
Frequency Range	1880~1920 MHz
Gain	10.0 dBi
VSWR	≤1.5: 1
Half Power Beamwidth	54°
Front to Back Ratio	>13 dB
Polarization	Vertical or Horizontal
Max. Power	150 Watts
Impedance	50 Ω
Connector	N (F)
Structure	7 Elements
Height (Approx.)	462 mm
Weight (Approx.)	0.327 Kg
Lightning Protection	DC Ground

Note : Mounting Hardware and Brackets are supplied with Antenna

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
