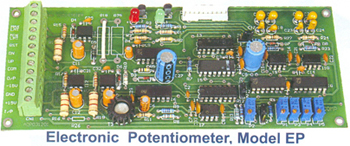

Solid State Potentiometers
| Product Specification | Model EP |
Model DP |
| Supply Voltage VDC | ± 15V, ± 10 %, 100 mAmp. | 24/48VDC or 230VAC |
| Output Vol. VDC | Any voltage between 0-5 or 0-10 | 0-4.096, 0-5, 0-10, -5 / 0 / 5 |
| Resolution | 8 Bits, 256 steps | 12 bits, 4096 steps |
| Output setting Time | 1 Micro Sec. | 25 micro sec. |
| Output Time | Selectable by set of 4 speeds Each for raise and lowering viz. 0.6 Hz, 2 Hz., 6Hz., 20 Hz |
As per customer requirement set to memory value on power up |
| Control Pulse | CMOS Compatible | TTL / CMOS Compatible |
| Accuracy | Better than ±0.19 % | ±½ LSB from 20 Counts to 4096 counts |
| Operations | Raise, Lower, Reset to Preset Value Pre set to zero or 10V |
Raise, Lower, Set, Clear |
| Output Drain | 6 mAmp. Indefinite short circuit protected | 6 mAmp. Indefinite short circuit protected |
|
Inter-latched Raise and Lower Switches
Output and Control Connections are available on PCB Mounted Screw Terminals. Provision for External Input (Vi) to digipot </= 10 VDC |
||
