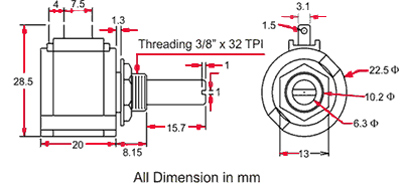

- Compact Design, Good Repeatability
- Low TR Resistance Wire
- Non Magnetic Stainless Steel Shaft
- Nickel Plated Brass Brush
- Gold Plated Terminals
- Specially Selected Wiper Material
- Reinforced Eng. Plastic Housing
| Number of Turns | 10 |
| Angle of Rotation | 3600° + 10/-0° |
Power Rating |
2 Watt @ 40° C |
Resistance range |
100Ω to 20KΩ |
Standard Resistance Value |
See Resolution Chart |
Resistane Tolerance |
Standard ± 5%, Others on request |
| End Resistance | 2Ω or % Lin. Whichever is greater |
Linearity Tolerance |
± 0.5 % Standard, ± 0.25% on request |
| Maximum Working Voltage | 250 VDC |
| Insulation Resistance | 1000 MΩ at 500 VDC |
| Voltage Proof | 750 VAC for 1min. at sea level |
| Rotational Life Expectance | 250,000 Shaft revolutions. Δ R <3% |
TCR of Resistance Wire |
See Resolution Chart |
| Temperature range | 0 to 70° C |
Resolution Chart
Res.Ω |
Resolution |
TCR PPM / °C |
100 |
0.052 |
30 |
200 |
0.041 |
30 |
250 |
0.039 |
30 |
500 |
0.029 |
30 |
1K |
0.021 |
30 |
2K |
0.029 |
80 |
5K |
0.016 |
80 |
10K |
0.012 |
80 |
20K |
0.010 |
20 |
| Model No. | Resistance Value |
Linearity | Shaft Length, mm |
|
| 2010 | 100, 250, 500, 1K, 2K, 5K,10K,20K | 0.5, 0.25 |
10, 15, as required
|
|
| Example: 2010, 20K, 0.25, 15mm | ||||
