Madhu Subtronics

	Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
	Snap-together design speeds up assembly
	Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate
	Max. 8 Terminal (4+4) - standard 5mm pitch
	Air ventilation - having slots for ventilation
	Protection - IP20 (finger protected) Protection against accidental contact
	Terminals are optional - Enclosure supplied with / without terminals-customer can use standard commercial terminal available of their choice.

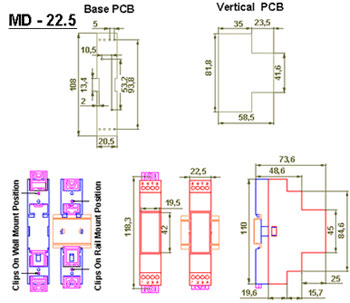

1] Case Top cover	4] Vertical PCB
2] Base Plate	5] Terminals
3] Base PCB	6] Mounting Clips
Material :
Cover : ABS	Noryl (FR - UL94V-0)
Polycarbonate (FR -UL94V-0)	Cover : White
Base : ABS	Base: Black
Ordering Informatiom
MD-22.5-01	Case complete without Terminals
MD-22.5-02	Case complete without Terminals
Accessories (Loose Parts)
MDC-22.5-01	Top Cover standard
MDB-22.5	Base plate with clips
MDP-22.5-01	Base PCB ( For initial prototype making )
ET-0.5-2P	Euro Terminal 2 Pin
ET-0.5-3P	Euro Terminal 3 Pin
