Madhu Subtronics

	Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails.
	Modular construction enables ease in design and servicing
	Enclosures inside: 70 x 105 x 60 mm.
	PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
	PCB guides: Integral molded guides in all directions
	Terminal Option: 36 Euro 5mm pitch OR 24 Fixed 3.75 mm pitch
	Knockout blanks for individual terminal configuration in covers of Euro Terminal version
	Top cover available with countersunk screws as option

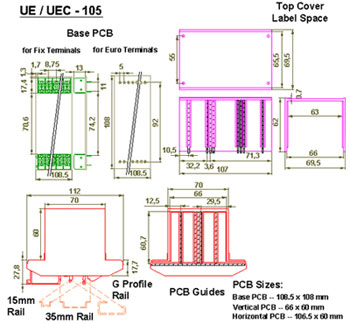

1] Top cover	6] Vertical PCB
2] End Piece	7] Horizontal PCB
3] Foot Piece	8] Euro Terminals
4] Spacer Piece	9] Fixed Terminals
5] Base PCB	10] Terminal Covers
Material :
Cover : ABS	Foot Piece : Nylon 6.6
End Piece : Nylon	Colour : Light Gray
Ordering Informatiom
UEC-105-00	Enclosure with Euro Term. Covers (Last two digits indicate number of terminal required 00 - No Term to 36 Max Term.
UE-105	Enclosure with Fixed 24 Term.
UEW-105	Enclosure without Terminals & Terminal Covers
Accessories (Loose Parts)
ET-0.5-2P	Euro Terminal 2 Pin
ET-0.5-3P	Euro Terminal 3 Pin
UBRH	High Bracket for Wall / Surface mounting.
UBRL	Low Bracket for Wall / Surface mounting.
PB-105	Base PCB (for Prototype making)
RL-105	Rail Piece For Wall Mounting
