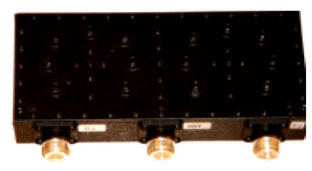

| Products > Duplexer > UMTS Duplexers Model No. - MES 12000 UN |
|
|
| Description Designed as rugged, yet low cost UMTS Duplexer, -MES 12000 UN offers excellent electrical charact eristics for 3G / UMTS applications. The Insertion Loss in each direction is below 0.3 dB. The Isolation between teo channels is better than 65 dB. All three ports features N (F) Connectors. |
|
PARAMETERS |
SPECIFICATIONS |
||||||||
| Frequency Range : Band I Band II |
1920-1980 MHz 2110-2170 MHz |
||||||||
| Insertion Loss | < 0.3 dB (Typical <0.15 dB) | ||||||||
| Attenuation | > 60 dB (Typical > 65 dB) | ||||||||
| Returm Loss | > 20 dB | ||||||||
| Power Inputs | 50 Watts | ||||||||
| IMD | < 140 dBc | ||||||||
| Connector | N (F) | ||||||||
| Approx. Dimensions (mm) | 33 x 167 x 87 | ||||||||
| Approx. Weight | 820 Grams | ||||||||
WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
|
