| Rotary
Switches - ERS-113 |
|
| |
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
20 m Ohms |
| Electrical
Life |
10000 Cycles / Pole |
| H. V. Break Down
Test |
1 KVAC for 1 minute |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms |
| Material
Body |
Nylon |
| Material Current
Carrying Parts |
Brass / Phosphor Bronze, Silver Plated
. |
| Material
Shaft |
Nylon - Black |
| Mounting |
Chassis, Screw-type |
| Permissible Temp
For With/Without Load |
-20Deg. C To +85Deg. C . |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. max. |
| Reference
Standard |
IEC-1058-1(1996) . |
| Terminals(Min) |
Push-In Type, 0.80 Thick . |
| Voltage
Rating |
4A, 250VAC /
125VAC |
|
| |
|
|
| |
|
| Rotary
Switches - ERS-114 |
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
|
|
| |
|
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
20 m Ohms |
| Electrical
Life |
10000 Cycles / Pole |
| H. V. Break Down
Test |
1 KVAC for 1 minute |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms |
| Material
Body |
Nylon |
| Material Current
Carrying Parts |
Brass / Phosphor Bronze, Silver Plated
. |
| Material
Shaft |
Nylon - White |
| Mounting |
Chassis, Screw-type |
| Permissible Temp
For With/Without Load |
-20Deg. C To +85Deg. C . |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. max. |
| Reference
Standard |
IEC-1058-1(1996) . |
| Terminals(Min) |
Push-In Type, 0.80 Thick . |
| Voltage
Rating |
4A, 250VAC /
125VAC |
|
| |
|
|
|
| |
|
|
| |
|
| |
|
 |
 |
| |
|
|
| |
|

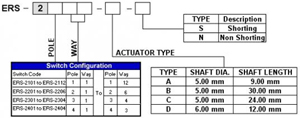

Ordering Code |
| |
|
|
| |
|
 |
| |
|
|
| |
|
Description |
| |
|
|
| |
|
02 - 16 Positions Switch |
| |
|
|
| |
|
Technical Specifications |
| |
|
| |
|
| Parameter |
Value |
| Contact
Resistance(Max, Initial) |
20 m Ohms |
| Electrical
Life |
10000 Cycles / Pole . |
| H. V. Break Down
Test |
250 VAC For 1 minute . |
| Insulation
Resistance at 500V DC(Min) |
1000 M Ohms |
| Material
Body |
Polyamide |
| Material Current
Carrying Parts |
Copeer Alloy, Silver
Plated |
| Material
Shaft |
Polyamide |
| Mounting |
Panel, Screw-type |
| Permissible Temp
For With/Without Load |
-20Deg. C To +85Deg. C . |
| Permissible Temp.
For Soldering |
270 deg. C for 5 sec. max. |
| Reference
Standard |
IEC-1058-1(1996) . |
| Terminals(Min) |
Solder-type |
| Voltage
Rating |
150mA, 50V
AC/DC |
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
