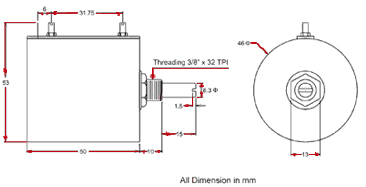

| Number of Turns | 10 |
| Effective Angle of Rotation | 3600 + 10/-0 |
Power Rating, Watt at 40°C |
3 |
Resistance range, Ω |
200-100K |
Resistance Tolerance, % |
± 5 Standard, others on request |
End Resistance, Ω |
2Ω or % Linearity, whicever is greater |
| Linearity Tolerance, % | ± 0.5 Standard, ± 0.25% Special |
Maximum Working Voltage, VDC |
1000 |
| Insulation Resistance, MΩ at 500 VDC | 1000 |
| Voltage Proof, VAC for 1 min, at sea level | 3000 |
| TCR of Resistance Wire, ppm /°C | 150 maximum, (Details in Resolution Chart) |
| Rotational Life Expectancy | 500,000 Shaft Revolution at 40 RPM Δ R< 3% |
| Temperature range, °C | 0 to 70 |
Resolution Chart
Res.Ω |
Resolution |
TCR PPM / °C |
50 |
- |
- |
100 |
0.046 |
30 |
200 |
0.030 |
30 |
250 |
0.029 |
30 |
500 |
0.029 |
30 |
1K |
0.019 |
30 |
2K |
0.015 |
80 |
5K |
0.010 |
80 |
10K |
0.015 |
80 |
50K |
0.006 |
80 |
100K |
0.004 |
80 |
| Model No. | Resistance Value |
Linearity | Shaft Length, mm |
|
| 5010 | 100, 200, 250, 500, 1K, 2K, 5K,10K,20K, 50K, 100K | ±0.25, ±0.5 |
10, 15, others
|
|
| Example: 5010, 10K, 0.25% 15mm | ||||
