Input Filter For UPS |
| |
|
|
| |
|
| Specifications for Input Filters (3 pahse ) |
| Rated Voltage Per Phase |
230V,AC 50Hz |
| Rated Current |
28A & 58A |
| Test Voltage |
1500v ac between Main terminals Shorted together & earth for 60 Secs. |
| Insulation Resistance |
> 100 m ohm between mains terminals shorted together & earth at 500 V DC |
| Operating Temperature Range |
0 to 85 Celsius
|
| Attenuation for Input Filter |
Mhz |
0.1 |
1 |
10 |
100 |
| ab |
>20 |
>40 |
>40 |
>20 |
|
| |
|
|
|
| |
|
Output Filter For UPS |
| |
Specifications for Output Filters |
| |
| Specifications for Output Filters |
| Rated Voltage Per Phase |
230V,AC |
| Rated Current |
46A & 19 A |
| Test Voltage |
1500v ac between Main terminals Shorted together & earth for 60 Secs. |
| Insulation Resistance |
> 100 m ohm between mains terminals shorted together & earth at 500 V DC |
| Operating Temperature Range |
0 to 85 Celsius
|
| Terminals (rerer drawing) |
1, 4, 6,8. |

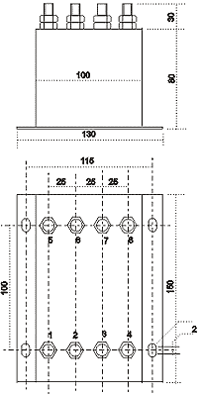

| Mechanical Drawing |
All Dimensions In MM |
 |
|
| |
|
| |
| |
|
|
|
|
|
